Model
|
| Panasonic AG-HVX200 |

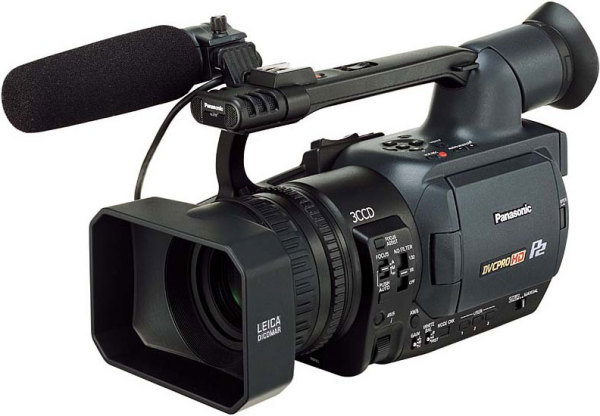

| Picture ? | |
| Manufacturer | Panasonic
|
| Name | AG-HVX200 |
| European name ? | AG-HVX200E |
| US name ? | AG-HVX200 |
| lowest US price | 2799 $ |
| On the market since | March 2006 |
| Manufacturers URL | link to Panasonic |
|
|
Test preview
|
| [ top ] | Panasonic AG-HVX200 |
| slashCAM rating ? | Good
 |
| test picture 1200 Lux | |
| test picture 12 Lux | |
Video
|
| [ top ] | Panasonic AG-HVX200 |
| Video formats ? | MiniDV
DVC PRO 25
DVC PRO 50
DVC PRO HD
|
| Recording Medium | MiniDV/HDV-Cassette
P2
|
| video resolutions EU ? | MiniDV 720 x 576/50i
DVC PRO 25,576 / 50i
DVC PRO 50,576 / 50i
DVC PRO HD 720/25p
DVC PRO HD 720/50p
DVCPROHD 1080/50i
|
| video resolutions US ? | DVCPROHD 1080/24p
DVCPROHD 1080/30p
MiniDV 720 x 480/60i
MiniDV 720 x480/24p
MiniDV 720 x 480/30p
DVCPRO HD 720 24p - 60i
DVCPRO HD 1080 24p - 60i
|
| Max Bitrate ? | 100 Mbit/s |
| Compression format ? | DV
DVC PRO HD-proprietary
|
| on-board memory ? | |
| Optics |
| Optics Manufacturer ? | Leica
|
| Optical Zoom ? | 13 x |
| Wide Angle 16:9 ? | 32,5 mm |
| Filter diameter ? | 82 mm |
| Image Stabilization ? | optical
|
| ND Filter ? | 2 |
| Exchangable optics ? | No
|
| Image Sensor |
| Number of sensors ? | 3 |
| Size of image sensor ? | 1/3 inch |
| image sensor effective pixel count 16:9 ? | 513000 Pixel |
| Image Sensor Type ? | CCD
|
| Controls |
| White Balance ? | auto
manual
presets
|
| Focus ? | auto
manual
|
| Minimum shutter time ? | 2.000 |
| Maximum shutter time ? | 1/12 |
| Apperture control ? | auto
manual
|
| Infrared recording ? | No
|
| Expanded Focus ? | No
|
| Peaking ? | Yes, but only in the viewfinder
|
| Signal Processing |
| Zebra ? | 50-105% |
| Histogram ? | No
|
| adjustable sharpness ? | Yes
|
| Adjustable color ? | Yes
|
| Cinegamma ? | Yes
|
| Black Strech ? | Yes
|
| Knee ? | Yes
|
| Colorbars ? | Yes
|
| Misc. |
| Shot Transition ? | |
| Custom Presets ? | |
| Set Time Code ? | |
Configuration
|
| Connections |
| [ top ] | Panasonic AG-HVX200 |
FBAS ?
synonymous: RCA, composite | In
Out
|
YC ?
synonymous: S-Video | In
Out
|
YUV ?
synonymous: Component Signal | Out
|
| HDMI ? | No
|
DV / HDV (FireWire) ?
synonymous: ILink / IEEE-1394 | Out
|
| USB ? | USB 2.0
|
| Microphone / Audio input ? | XLR
Cinch
|
| Headphones ? | Mini-jack
|
| Lanc ? | |
| Time-code interface ? | |
| Genlock ? | No
|
| Accessory shoe ? | Standard
|
| HD-SDI ? | No
|
| Misc. |
| Weight (without battery) | 2500 g |
| Weight (with battery) | 2700 g |
| Battery type | Panasonic CGA-D54
|
| Battery capacity | 5400 mAh |
| Charger ? | external
|
| Remote control | Yes
|
| Size |
| Height | 169 mm |
| Width | 180 mm |
| Depth | 390 mm |
| Relative Size ? | 118 |
| Viewfinder |
| Viewfinder available ? | Yes
|
| Color Viewfinder ? | Color
|
| Viewfinder format ? | 4:3 |
| Viewfinder pixels ? | 210000 Pixel |
| Display |
| Display available ? | Yes
|
| Color display ? | Color
|
| Display size | 3,5 Inch |
| Display format ? | 4:3 |
| Display pixels ? | 235000 Pixel |
| Touch Screen ? | No
|
| External controls |
| Manual Zoom ? | Ring
|
| Manual Focus ? | Ring
|
| Manual Aperture ? | |
| Focus switcher ? | Yes
|
| ND Filter ? | Yes
|
| Exp Lock ? | |
| Gain ? | Yes
|
| White balance ? | Yes
|
| Push AF ? | Yes
|
| Audio Levels ? | Yes
|
Custom Keys ?
synonymous: User buttons | 3 |
Audio
|
| [ top ] | Panasonic AG-HVX200 |
| Audio Formats ? | MiniDV: 2x48kHz 16bit PCM
MiniDV: 4x32kHz 12bit PCM
DVC PRO 4x48kHz 16bit PCM
|
| Microphone ? | Stereo internal
external XLR
|
| Audio Control ? | auto
manual
|
| Audio levels ? | Viewfinder
Screen
|
Still
|
| [ top ] | Panasonic AG-HVX200 |
| Recording Medium ? | |
| Medium included ? | |
| Effective pixels ? | |
| Resolutions ? | 1920x1080 |
| Standard ? | |
| Flash ? | |
Misc.
|
| [ top ] | Panasonic AG-HVX200 |
| Specials | + variable frame rates
|
Product Shots
|
| [ top ] | Panasonic AG-HVX200 |

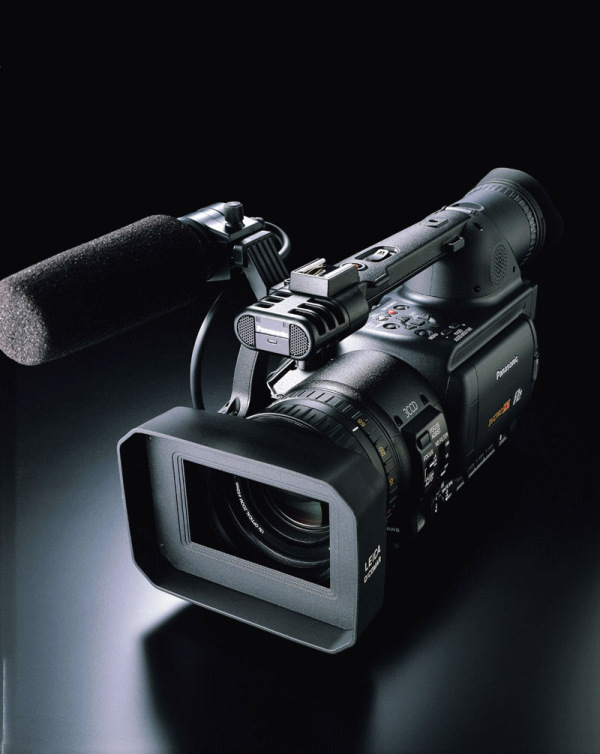

| View 1 | |

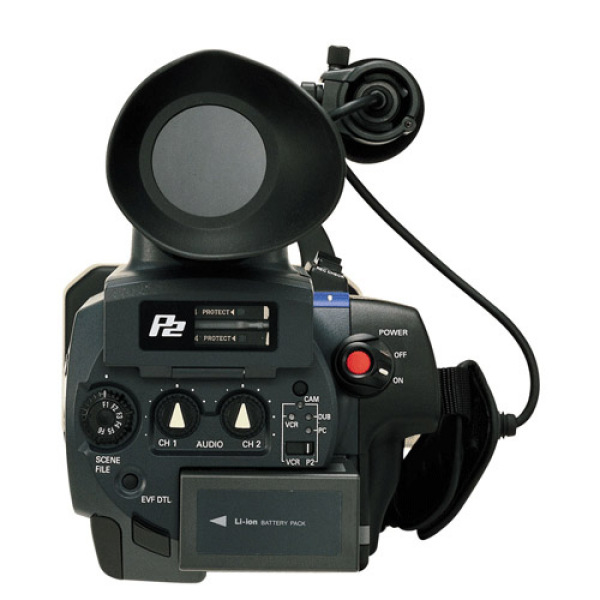

| View 2 | |
Test results
|
| Test pictures |
| [ top ] | Panasonic AG-HVX200 |

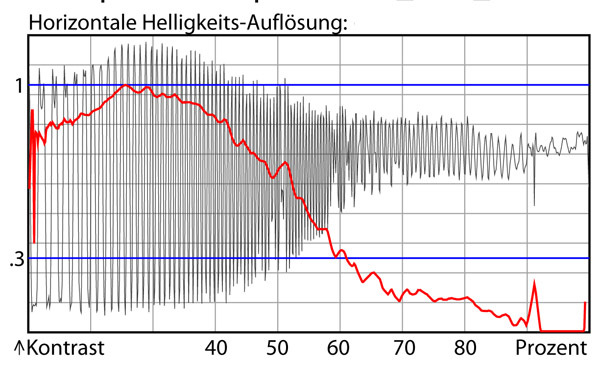

| luminance resolution | |

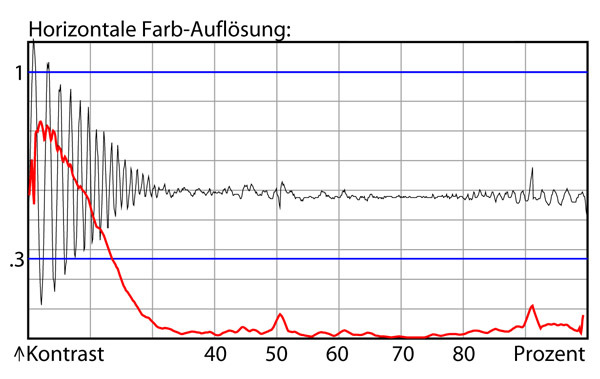

| chrominance resolution | |

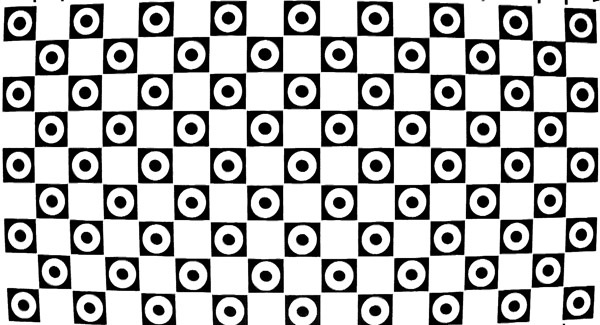

| lens distortion | |

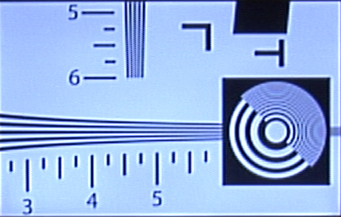

| test small ISO image | |
| noise / internal microphone | |

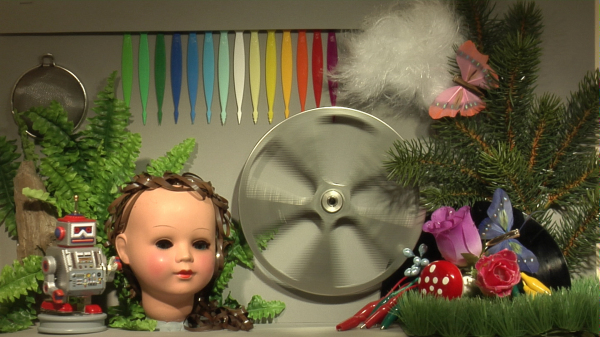

| test picture 1200 Lux | |

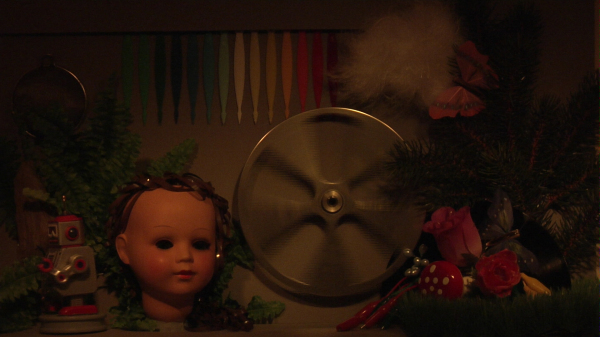

| test picture 12 Lux | |
| slashCAM rating |
| Lowlight ? | Satisfactory |
| Resolution ? | Satisfactory |
| Color performance ? | Good |
| subj.Picture impression ? | Good |
| Optical Zoom ? | Sufficient |
| Wide Angle ? | Very good |
| Configuration / image ? | Very good |
| Configuration / sound ? | Very good |
| Handling ? | Good |
| Portability ? | Satisfactory |
| Photo function ? | Sufficient |
| Optics ? | Very good |
| Dynamics ? | Very good |
| Conclusion slashCAM |
| slashCAM rating ? | Good
|
Total score ?
(maximal 570) | 382 |
| Pros | Good wide angle
+ Professional controls
+ Real 50p-mode and variable frame rates
|
| Cons | - Menu buttons/distribution unergonomic
- Display
- Driver necessary for PC/Mac
|
| Conclusion | Unfortunately, with the AG-HVX200 Panasonic puts its focus on pixel shift instead of real CCD-resolution.This provides only satisfactory results in terms of luminance resolution.The color resolution is much better, in the SD-Modi (especially DVCPro50) the HVX200 is also very good.Image noise is increased by the delineation, therefore lowlight-images look somewhat unsettled.The image dynamic and the very good lens still make for a good image impression in HiDef, in the DVCPro50-mode it is very good. |
