Panasonic HDC-SD5 (HDC-SD5EG)

display: - Test/Review and technical specifications3 models per page
Model

Panasonic HDC-SD5

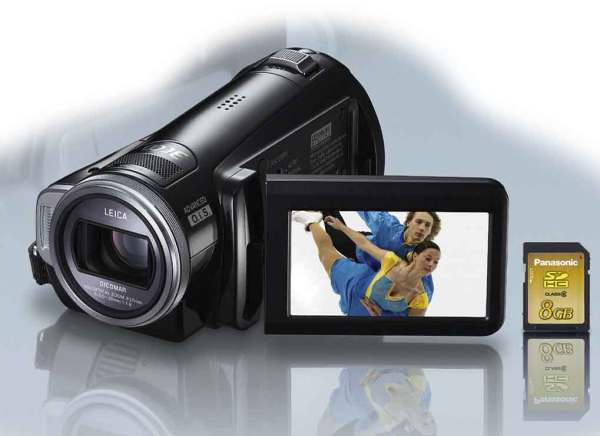

Picture ?
Manufacturer Panasonic Information about Panasonic

Name HDC-SD5
European name ?HDC-SD5EG
US name ?HDC-SD5
lowest US price 499 $
On the market since September 2007
Manufacturers URL link to Panasonic
Test preview

[ top ]Panasonic HDC-SD5
slashCAM rating ?not yet tested
test picture 1200 Lux
test picture 12 Lux
Video

[ top ]Panasonic HDC-SD5
Video formats ? AVCHD
Recording Medium SD Card
video resolutions EU ?AVCHD 1440 x 1080/50i
AVCHD 1920 x 1080/50i
video resolutions US ?AVCHD 1920 x 1080/60i
AVCHD 1440 x 1080/60i
Max Bitrate ?13 Mbit/s
Compression format ? MPEG4
on-board memory ?
Optics
Optics Manufacturer ? Leica
Optical Zoom ?10 x
Wide Angle 16:9 ?42,9 mm
Filter diameter ?37 mm
Image Stabilization ?optical
ND Filter ?No
Exchangable optics ?No
Image Sensor
Number of sensors ?3
Size of image sensor ?1/6 inch
image sensor effective pixel count 16:9 ?520000 Pixel
Image Sensor Type ? CCD
Controls
White Balance ?auto
manual
presets
Focus ?
Minimum shutter time ?8.000
Maximum shutter time ?1/25
Apperture control ?auto
Infrared recording ?Yes
Expanded Focus ?Yes
Peaking ?
Signal Processing
Zebra ?
Histogram ?
adjustable sharpness ?
Adjustable color ?
Cinegamma ?
Black Strech ?
Knee ?
Colorbars ?
Misc.
Shot Transition ?
Custom Presets ?
Set Time Code ?
Configuration

Connections
[ top ]Panasonic HDC-SD5
FBAS ?
synonymous: RCA, composite
YC ?
synonymous: S-Video
YUV ?
synonymous: Component Signal		 Out
HDMI ? Out
DV / HDV (FireWire) ?
synonymous: ILink / IEEE-1394
USB ?USB 2.0
Microphone / Audio input ?No
Headphones ?No
Lanc ?
Time-code interface ?
Genlock ?
Accessory shoe ?
HD-SDI ?No
Misc.
Weight (without battery) 340 g
Weight (with battery)
Battery type
Battery capacity
Charger ?
Remote control
Size
Height 65 mm
Width 67 mm
Depth 135 mm
Relative Size ?5
Viewfinder
Viewfinder available ?No
Color Viewfinder ?
Viewfinder format ?
Viewfinder pixels ?
Display
Display available ?Yes
Color display ?Color
Display size 2,7 Inch
Display format ?16:9
Display pixels ?300000 Pixel
Touch Screen ?No
External controls
Manual Zoom ?Rocker
Manual Focus ?
Manual Aperture ?
Focus switcher ?
ND Filter ?No
Exp Lock ?No
Gain ?No
White balance ?No
Push AF ?No
Audio Levels ?No
Custom Keys ?
synonymous: User buttons		No
Audio

[ top ]Panasonic HDC-SD5
Audio Formats ?Dolby AC-3 Digital 2 channel 48 KHz
Microphone ?Stereo internal
Audio Control ?
Audio levels ?
Still

[ top ]Panasonic HDC-SD5
Recording Medium ?SD Card
Medium included ?
Effective pixels ?
Resolutions ?
Standard ?
Flash ?
Misc.

[ top ]Panasonic HDC-SD5
Specials
Product Shots

[ top ]Panasonic HDC-SD5

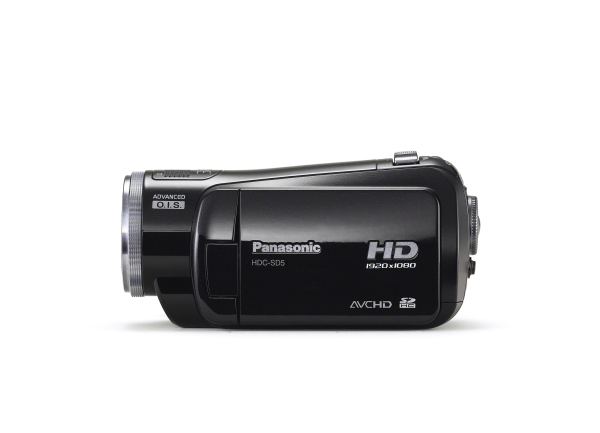

View 1

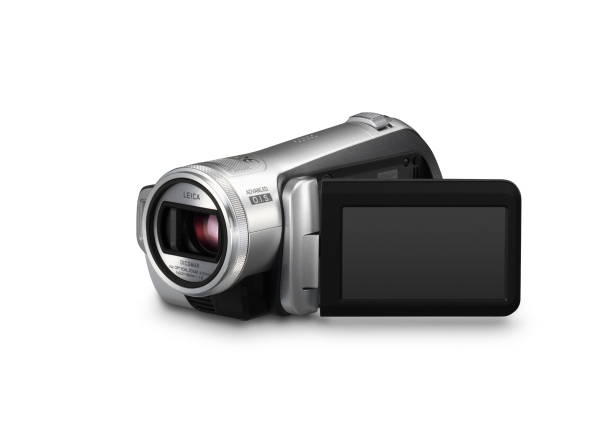

View 2
Test results

Test pictures
[ top ]Panasonic HDC-SD5
luminance resolution
chrominance resolution
lens distortion
test small ISO image
noise / internal microphone
test picture 1200 Lux
test picture 12 Lux
slashCAM rating
Lowlight ?
Resolution ?
Color performance ?
subj.Picture impression ?
Optical Zoom ?
Wide Angle ?
Configuration / image ?
Configuration / sound ?
Handling ?
Portability ?
Photo function ?
Optics ?
Dynamics ?
Conclusion slashCAM
slashCAM rating ?not yet tested
Total score ?
(maximal 570)
Pros
Cons
Conclusion
