Panasonic HDC-SD1 (HDC-SD1EG-S)

display: - Test/Review and technical specifications3 models per page
Model

Panasonic HDC-SD1

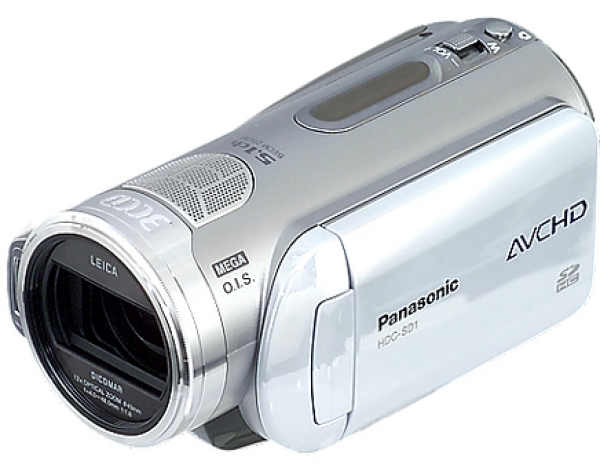

Picture ?
Manufacturer Panasonic Information about Panasonic

Name HDC-SD1
European name ?HDC-SD1EG-S
US name ?HDC-SD1
lowest US price 800 $
On the market since March 2007
Manufacturers URL link to Panasonic
Test preview

[ top ]Panasonic HDC-SD1
slashCAM rating ?Satisfactory
test picture 1200 Lux
test picture 12 Lux
Video

[ top ]Panasonic HDC-SD1
Video formats ? AVCHD
Recording Medium SD Card
video resolutions EU ?AVCHD 1440 x 1080/50i
video resolutions US ?AVCHD 1440 x 1080/60i
Max Bitrate ?13 Mbit/s
Compression format ? MPEG4
on-board memory ?
Optics
Optics Manufacturer ? Leica
Optical Zoom ?12 x
Wide Angle 16:9 ?38,5 mm
Filter diameter ?43 mm
Image Stabilization ?optical
ND Filter ?
Exchangable optics ?No
Image Sensor
Number of sensors ?3
Size of image sensor ?1/4 inch
image sensor effective pixel count 16:9 ?520000 Pixel
Image Sensor Type ? CCD
Controls
White Balance ?auto
manual
presets
Focus ?auto
manual
Minimum shutter time ?8.000
Maximum shutter time ?1/50
Apperture control ?
Infrared recording ?
Expanded Focus ?
Peaking ?
Signal Processing
Zebra ?
Histogram ?
adjustable sharpness ?
Adjustable color ?
Cinegamma ?
Black Strech ?
Knee ?
Colorbars ?
Misc.
Shot Transition ?
Custom Presets ?
Set Time Code ?
Configuration

Connections
[ top ]Panasonic HDC-SD1
FBAS ?
synonymous: RCA, composite
YC ?
synonymous: S-Video
YUV ?
synonymous: Component Signal
HDMI ? Out
DV / HDV (FireWire) ?
synonymous: ILink / IEEE-1394
USB ?USB 2.0
Microphone / Audio input ?Mini-jack
Headphones ?
Lanc ?
Time-code interface ?
Genlock ?
Accessory shoe ?
HD-SDI ?No
Misc.
Weight (without battery) 430 g
Weight (with battery) 490 g
Battery type
Battery capacity
Charger ?
Remote control
Size
Height 74 mm
Width 69 mm
Depth 142 mm
Relative Size ?7
Viewfinder
Viewfinder available ?No
Color Viewfinder ?
Viewfinder format ?
Viewfinder pixels ?
Display
Display available ?Yes
Color display ?Color
Display size 3,0 Inch
Display format ?16:9
Display pixels ?251000 Pixel
Touch Screen ?
External controls
Manual Zoom ?
Manual Focus ?
Manual Aperture ?
Focus switcher ?
ND Filter ?
Exp Lock ?
Gain ?
White balance ?
Push AF ?
Audio Levels ?
Custom Keys ?
synonymous: User buttons
Audio

[ top ]Panasonic HDC-SD1
Audio Formats ?AC-3 Dolby Digital 5.1 640 kbit max.
Microphone ?Stereo internal
Mini-jack external
Audio Control ?
Audio levels ?
Still

[ top ]Panasonic HDC-SD1
Recording Medium ?SD Card
Medium included ?4 GB
Effective pixels ?
Resolutions ?1920x1080
Standard ?JPEG Exif 2.2
Flash ?Yes
Misc.

[ top ]Panasonic HDC-SD1
Specials
Product Shots

[ top ]Panasonic HDC-SD1

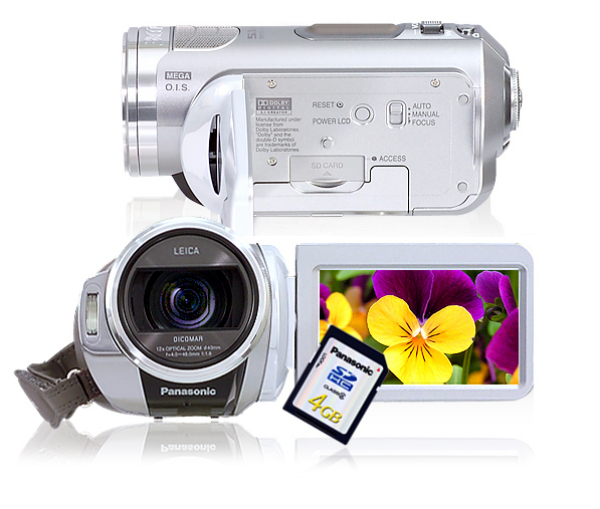

View 1

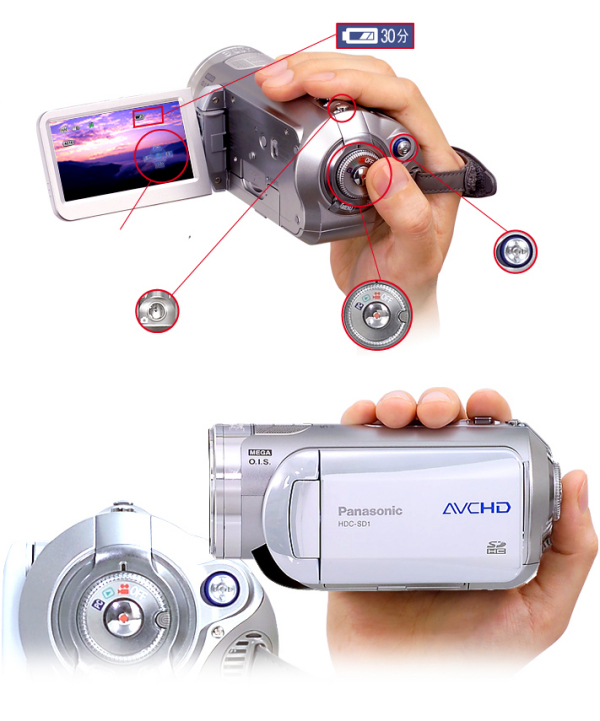

View 2
Test results

Test pictures
[ top ]Panasonic HDC-SD1

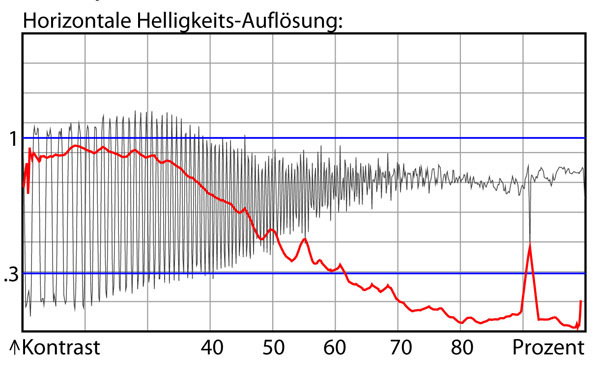

luminance resolution

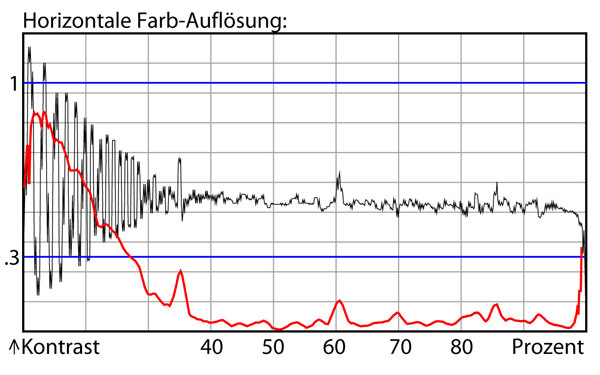

chrominance resolution
lens distortion

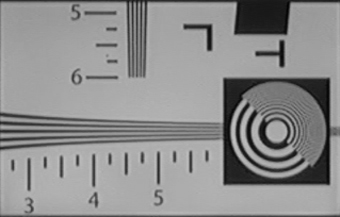

test small ISO image

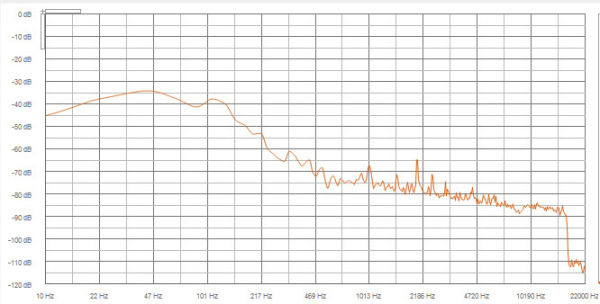

noise / internal microphone
test picture 1200 Lux
test picture 12 Lux
slashCAM rating
Lowlight ?Good
Resolution ?Sufficient
Color performance ?Good
subj.Picture impression ?Good
Optical Zoom ?Sufficient
Wide Angle ?Satisfactory
Configuration / image ?Satisfactory
Configuration / sound ?Sufficient
Handling ?Satisfactory
Portability ?Very good
Photo function ?Sufficient
Optics ?Good
Dynamics ?Good
Conclusion slashCAM
slashCAM rating ?Satisfactory
Total score ?
(maximal 570)		320
Pros + Acceptable wide-angle
+ Good lowlight characteristics
Cons - No FullHD
-3CCDs with pixelshif do not result in full sharpness
-fan
Conclusion In our opinion the SD1 is the best AVCHD Cam by Panansonic, and it remains competitive in 2008 thanks to its wide-angle and lowlight characteristics .
