Model
|
| Canon XF105 |
| Picture ? | |
| Manufacturer | Canon
|
| Name | XF105 |
| European name ? | XF105E |
| US name ? | XF105 |
| lowest US price | 2949 $ |
| On the market since | January 2011 |
| Manufacturers URL | link to Canon |
|
|
Test preview
|
| [ top ] | Canon XF105 |
| slashCAM rating ? | Very good
 |
| test picture 1200 Lux | |
| Test image 12 lux auto-mode | |
Video
|
| [ top ] | Canon XF105 |
| Video formats ? | MPEG2 - MXF
|
| Recording Medium | Compact Flash
|
| video resolutions EU ? | MPEG2 1920x1080 50i
MPEG2 720p12 -50
MPEG2-1080p12 25
|
| video resolutions US ? | MPEG2 1920 x 1080/60i
MPEG2-720p12 60
MPEG2 1080p12-30
|
| Max Bitrate ? | 50 Mbit/s |
| Compression format ? | MPEG2 MXF
|
| on-board memory ? | |
| Optics |
| Optics Manufacturer ? | Canon
|
| Optical Zoom ? | 10 x |
| Wide Angle 16:9 ? | 30,4 mm |
| Filter diameter ? | 58 mm |
| Image Stabilization ? | optically and electronically
|
| ND Filter ? | digital
|
| Exchangable optics ? | No
|
| Image Sensor |
| Number of sensors ? | 1 |
| Size of image sensor ? | 1/3 inch |
| image sensor effective pixel count 16:9 ? | 2070000 Pixel |
| Image Sensor Type ? | CMOS
|
| Controls |
| White Balance ? | auto
manual
presets
|
| Focus ? | auto
manual
|
| Minimum shutter time ? | 1/2.000 |
| Maximum shutter time ? | 1/3 |
| Apperture control ? | auto
manual
AE-Shift
|
| Infrared recording ? | Yes
|
| Expanded Focus ? | Yes
|
| Peaking ? | Yes
|
| Signal Processing |
| Zebra ? | 50-105% |
| Histogram ? | waveform
|
| adjustable sharpness ? | Yes
|
| Adjustable color ? | Yes
|
| Cinegamma ? | Yes
|
| Black Strech ? | Yes
|
| Knee ? | Yes
|
| Colorbars ? | Yes
|
| Misc. |
| Shot Transition ? | No
|
| Custom Presets ? | Yes
|
| Set Time Code ? | Yes
|
Configuration
|
| Connections |
| [ top ] | Canon XF105 |
FBAS ?
synonymous: RCA, composite | Out
|
YC ?
synonymous: S-Video | No
|
YUV ?
synonymous: Component Signal | Out
|
| HDMI ? | Out
|
DV / HDV (FireWire) ?
synonymous: ILink / IEEE-1394 | - |
| USB ? | USB 2.0 OUT
|
| Microphone / Audio input ? | XLR
|
| Headphones ? | Mini-jack
|
| Lanc ? | |
| Time-code interface ? | In
Out
|
| Genlock ? | In
|
| Accessory shoe ? | Standard
|
| HD-SDI ? | Out
|
| Misc. |
| Weight (without battery) | 1000 g |
| Weight (with battery) | 1100 g |
| Battery type | Canon BP-925
|
| Battery capacity | |
| Charger ? | external
|
| Remote control | Yes
|
| Size |
| Height | 139 mm |
| Width | 191 mm |
| Depth | 268 mm |
| Relative Size ? | 71 |
| Viewfinder |
| Viewfinder available ? | Yes
|
| Color Viewfinder ? | Color
|
| Viewfinder format ? | 16:9 |
| Viewfinder pixels ? | 260000 Pixel |
| Display |
| Display available ? | Yes
|
| Color display ? | Color
|
| Display size | 3,5 Inch |
| Display format ? | 16:9 |
| Display pixels ? | 920000 Pixel |
| Touch Screen ? | No
|
| External controls |
| Manual Zoom ? | Rocker
Zoom ring multi-assigned
|
| Manual Focus ? | Ring
bi-functional focus or aperture wheel
|
| Manual Aperture ? | Ring
bi-functional focus or aperture wheel
|
| Focus switcher ? | Yes
|
| ND Filter ? | No
|
| Exp Lock ? | No
|
| Gain ? | Yes
|
| White balance ? | Yes
|
| Push AF ? | No
|
| Audio Levels ? | Yes
|
Custom Keys ?
synonymous: User buttons | 10 |
Audio
|
| [ top ] | Canon XF105 |
| Audio Formats ? | 2 channel PCM
|
| Microphone ? | Stereo internal
external XLR
|
| Audio Control ? | auto
manual
|
| Audio levels ? | Viewfinder
Screen
display
|
Still
|
| [ top ] | Canon XF105 |
| Recording Medium ? | |
| Medium included ? | |
| Effective pixels ? | |
| Resolutions ? | |
| Standard ? | |
| Flash ? | |
Misc.
|
| [ top ] | Canon XF105 |
| Specials | Variable frame rates:720p: 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50fps1080p: 12, 15, 18, 20, 21, 22, 23, 24, 25fps |
Product Shots
|
| [ top ] | Canon XF105 |

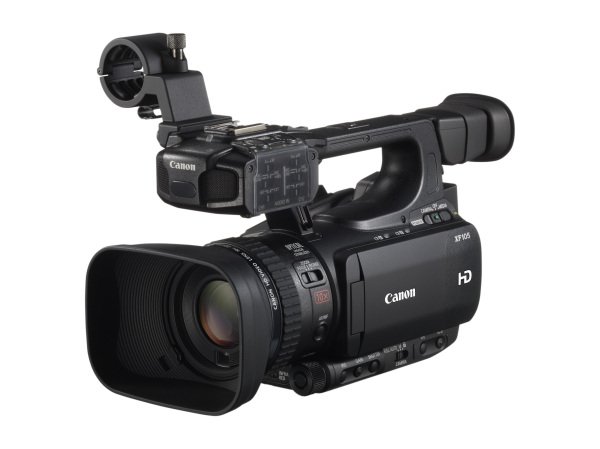

| View 1 | |
| View 2 | |
Test results
|
| Test pictures |
| [ top ] | Canon XF105 |

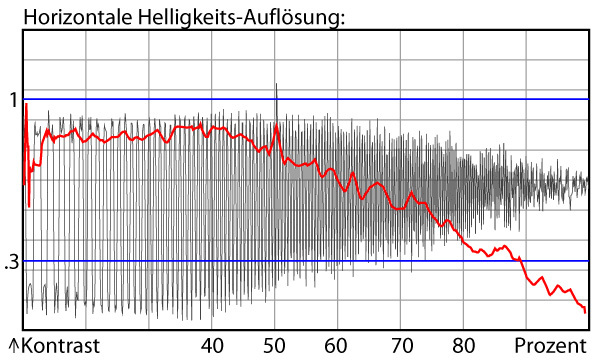

| luminance resolution | |

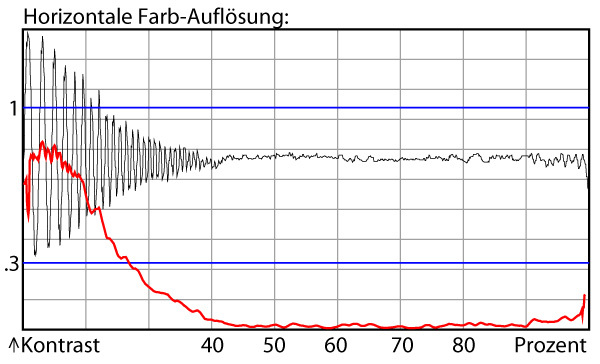

| chrominance resolution | |

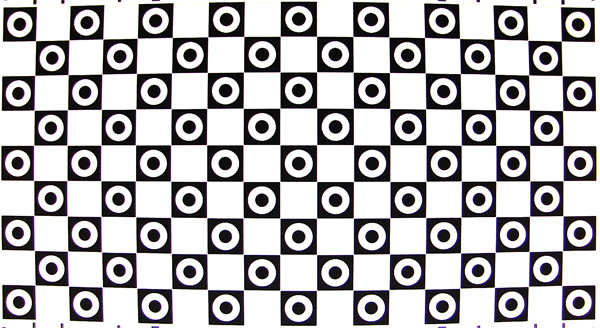

| lens distortion | |

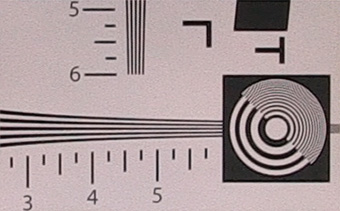

| test small ISO image | |

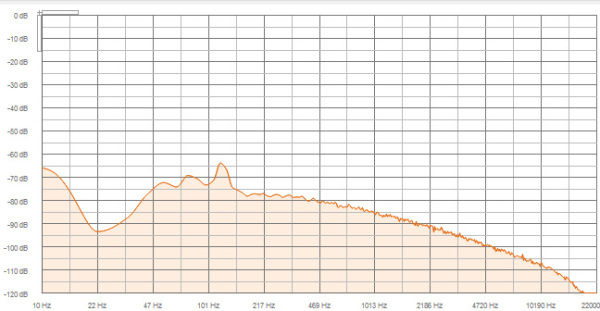

| noise / internal microphone | |

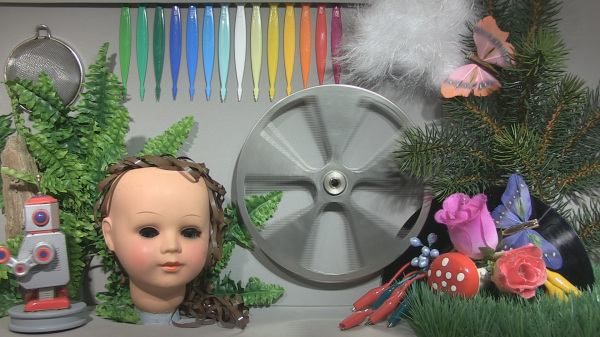

| test picture 1200 Lux | |

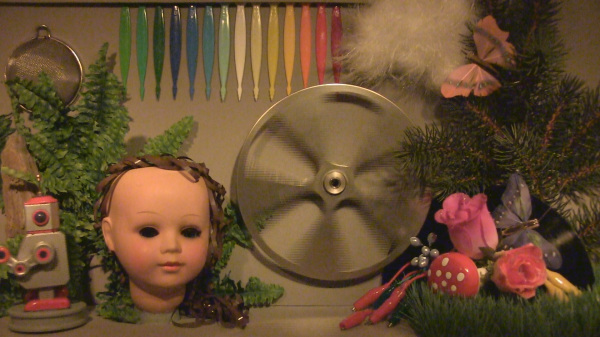

| Test image 12 lux auto-mode ? | |

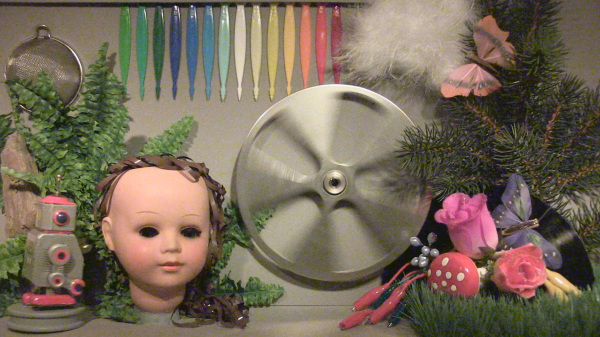

| Test image 12 lux optimized ? | |
| slashCAM rating |
| Lowlight ? | Good |
| Resolution ? | Very good |
| Color performance ? | Very good |
| subj.Picture impression ? | Very good |
| Optical Zoom ? | Sufficient |
| Wide Angle ? | Excellent |
| Configuration / image ? | Excellent |
| Configuration / sound ? | Excellent |
| Handling ? | Good |
| Portability ? | Good |
| Photo function ? | Sufficient |
| Optics ? | Very good |
| Dynamics ? | Very good |
| Conclusion slashCAM |
| slashCAM rating ? | Very good
|
Total score ?
(maximal 570) | 462 |
| Pros | + Codec with 4:2:2 50 Mbps
|
| Cons | - No ND filter
|
| Conclusion | The XF100/105 is a compact workhorse that plays off its strength especially in the documentation and news area (less in a scenic environment).Here the camera concept feels quite well thought-through.The lack of a ND filter and the 1/3" chip are our main points of criticism, aside from slight difficulties in the handling, though these of course are partly due to the compact form. |
