Canon HF S200

display: - Test/Review and technical specifications3 models per page
Model

Canon HF S200
Picture ?
Manufacturer Canon Informationen zu Canon

Name HF S200
European name ?Legria HF S200
US name ?VIXIA HF S200
lowest US price 800 $
On the market since April 2010
Manufacturers URL link to Canon
Test preview

[ top ]Canon HF S200
slashCAM rating ?Good
test picture 1200 Lux
Test image 12 lux auto-mode
Video

[ top ]Canon HF S200
Video formats ? AVCHD
Recording Medium SDHC card
built-in flash memory
video resolutions EU ?AVCHD 1440 x 1080/50i
AVCHD 1920 x 1080/50i
AVCHD 1920 x 1080/25p
AVCHD 1440 x 1080/25p
video resolutions US ?AVCHD 1920 x 1080/60i
AVCHD 1920 x 1080/24p
AVCHD 1440 x 1080/60i
AVCHD 1440 x 1080/24p
AVCHD 1920 x 1080/30p
Max Bitrate ?24 Mbit/s
Compression format ? MPEG4
on-board memory ?
Optics
Optics Manufacturer ? Canon
Optical Zoom ?10 x
Wide Angle 16:9 ?43,6 mm
Filter diameter ?58 mm
Image Stabilization ?optically and electronically
ND Filter ?No
Exchangable optics ?No
Image Sensor
Number of sensors ?1
Size of image sensor ?1/2,6 inch
image sensor effective pixel count 16:9 ?6010000 Pixel
Image Sensor Type ? CMOS
Controls
White Balance ?auto
manual
presets
Focus ?auto
manual
Minimum shutter time ?1/2.000
Maximum shutter time ?1/2
Apperture control ?auto
manual
Infrared recording ?No
Expanded Focus ?Yes
Peaking ?Yes
Signal Processing
Zebra ?70%
100%
Histogram ?No
adjustable sharpness ?Yes
Adjustable color ?Yes
Cinegamma ?Yes
Black Strech ?No
Knee ?No
Colorbars ?Yes
Misc.
Shot Transition ?No
Custom Presets ?Yes
Set Time Code ?No
Configuration

Connections
[ top ]Canon HF S200
FBAS ?
synonymous: RCA, composite		 Out
YC ?
synonymous: S-Video		No
YUV ?
synonymous: Component Signal		 Out
HDMI ? Out
DV / HDV (FireWire) ?
synonymous: ILink / IEEE-1394		-
USB ?USB 2.0
Microphone / Audio input ?Mini-jack
Headphones ?also AV-output
Lanc ?Yes
Time-code interface ?No
Genlock ?No
Accessory shoe ?Advanced Mini
HD-SDI ?No
Misc.
Weight (without battery) 470 g
Weight (with battery) 520 g
Battery type Canon BP-807
Battery capacity 890 mAh
Charger ?internal
Remote control Yes
Size
Height 75 mm
Width 74 mm
Depth 140 mm
Relative Size ?7
Viewfinder
Viewfinder available ?No
Color Viewfinder ?-
Viewfinder format ?-
Viewfinder pixels ?
Display
Display available ?Yes
Color display ?Color
Display size 3,5 Inch
Display format ?16:9
Display pixels ?922000 Pixel
Touch Screen ?Yes
External controls
Manual Zoom ?Rocker
Manual Focus ?Menu
bi-functional focus or aperture wheel
Manual Aperture ?Menu
bi-functional focus or aperture wheel
Focus switcher ?Yes
ND Filter ?No
Exp Lock ?No
Gain ?No
White balance ?No
Push AF ?No
Audio Levels ?No
Custom Keys ?
synonymous: User buttons		1
Audio

[ top ]Canon HF S200
Audio Formats ?Dolby AC-3 Digital 2 channel 48 KHz
Microphone ?Stereo internal
Mini-jack external
Audio Control ?auto
manual
Audio levels ?Screen
Still

[ top ]Canon HF S200
Recording Medium ?SDHC card
Medium included ?No
Effective pixels ?
Resolutions ?3264 x 2448
3264 x 2456 max
Standard ?JPEG Exif 2.2
Flash ?Yes
Misc.

[ top ]Canon HF S200
Specials 2 SDHC slots
Product Shots

[ top ]Canon HF S200

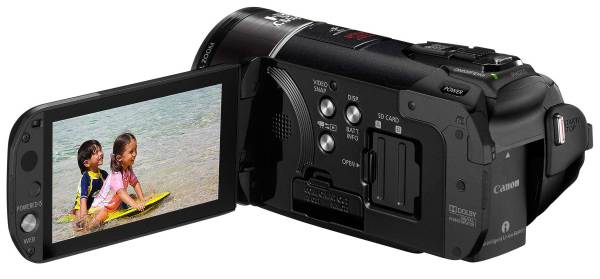

View 1

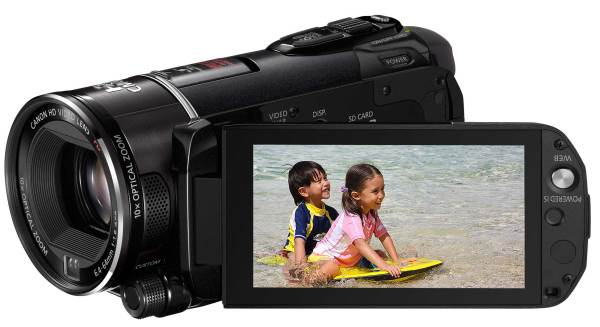

View 2
Test results

Test pictures
[ top ]Canon HF S200

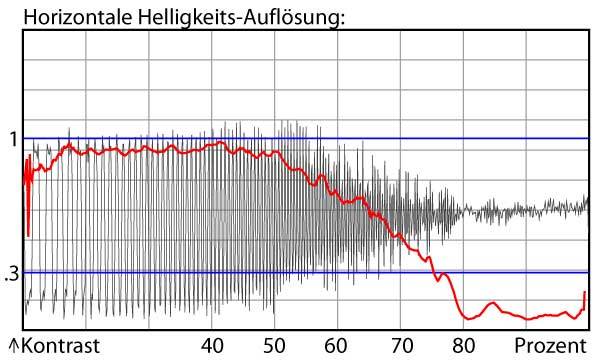

luminance resolution

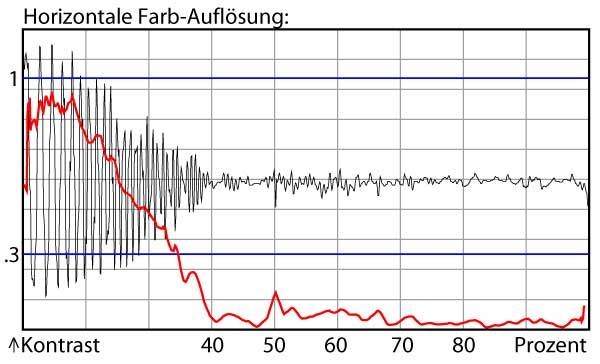

chrominance resolution

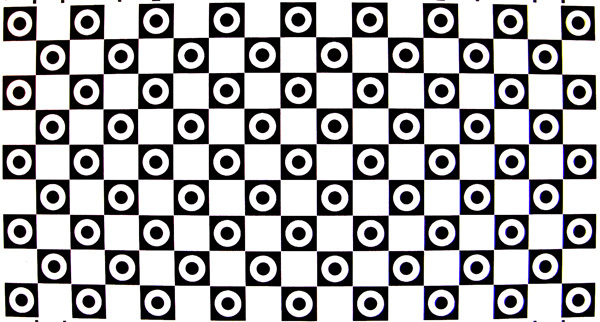

lens distortion

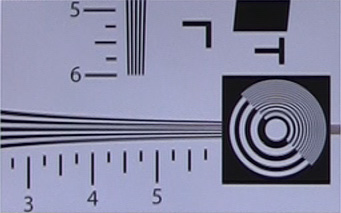

test small ISO image

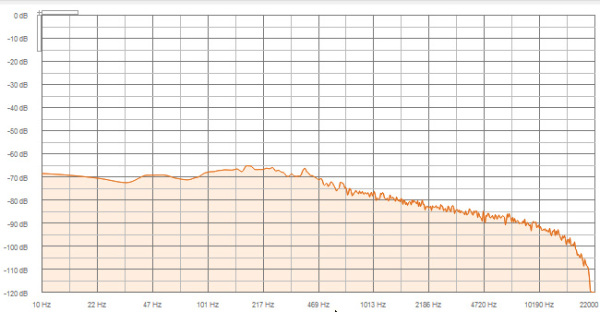

noise / internal microphone
test picture 1200 Lux
Test image 12 lux auto-mode ?
Test image 12 lux optimized ?
slashCAM rating
Lowlight ?Good
Resolution ?Satisfactory
Color performance ?Very good
subj.Picture impression ?Very good
Optical Zoom ?Sufficient
Wide Angle ?Poor
Configuration / image ?Good
Configuration / sound ?Satisfactory
Handling ?Good
Portability ?Very good
Photo function ?Satisfactory
Optics ?Good
Dynamics ?Good
Conclusion slashCAM
slashCAM rating ?Good
Total score ?
(maximal 570)		348
Pros + Many manual controls
Cons - small wide angle
Conclusion The sharpness is only slightly below what is possible in this price range and the options for manual control are also quite ok.The touchscreen is a real improvement, so the problems with focus setting we used to citizise are gone.Since Sony offers more manual in this price range than they did before and both Sony and Panasonic have more wide angle, the HF S models of 2010 appear a little overpriced.
