Model
|
| Sony HDR-SR1 |

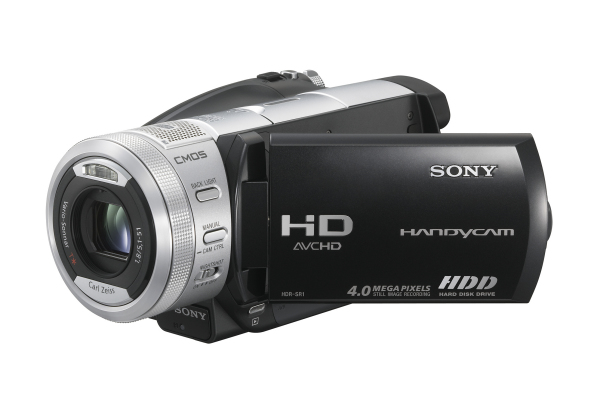

| Picture ? | |
| Manufacturer | Sony
|
| Name | HDR-SR1 |
| European name ? | HDR-SR1E |
| US name ? | HDRSR1 |
| lowest US price | 874 $ |
| On the market since | October 2006 |
| Manufacturers URL | link to Sony |
|
|
Test preview
|
| [ top ] | Sony HDR-SR1 |
| slashCAM rating ? | Satisfactory
 |
| test picture 1200 Lux |  |
| Test image 12 lux auto-mode | |
Video
|
| [ top ] | Sony HDR-SR1 |
| Video formats ? | AVCHD
|
| Recording Medium | Built-in hard disk
|
| video resolutions EU ? | AVCHD 1440 x 1080/50i
MPEG2 720 x756/50i
|
| video resolutions US ? | AVCHD 1440 x 1080/60i
|
| Max Bitrate ? | 15 Mbit/s |
| Compression format ? | MPEG2
MPEG4
|
| on-board memory ? | 30 GB |
| Optics |
| Optics Manufacturer ? | Carl Zeiss
|
| Optical Zoom ? | 10 x |
| Wide Angle 16:9 ? | 41,3 mm |
| Filter diameter ? | 30 mm |
| Image Stabilization ? | electronical
|
| ND Filter ? | No
|
| Exchangable optics ? | No
|
| Image Sensor |
| Number of sensors ? | 1 |
| Size of image sensor ? | 1/3 inch |
| image sensor effective pixel count 16:9 ? | 1434000 Pixel |
| Image Sensor Type ? | CMOS
|
| Controls |
| White Balance ? | auto
manual
presets
|
| Focus ? | auto
manual
|
| Minimum shutter time ? | 1/425 |
| Maximum shutter time ? | 1/3 |
| Apperture control ? | auto
|
| Infrared recording ? | Yes
|
| Expanded Focus ? | Yes
|
| Peaking ? | No
|
| Signal Processing |
| Zebra ? | Off
70%
100%
|
| Histogram ? | No
|
| adjustable sharpness ? | No
|
| Adjustable color ? | No
|
| Cinegamma ? | No
|
| Black Strech ? | No
|
| Knee ? | No
|
| Colorbars ? | No
|
| Misc. |
| Shot Transition ? | No
|
| Custom Presets ? | No
|
| Set Time Code ? | No
|
Configuration
|
| Connections |
| [ top ] | Sony HDR-SR1 |
FBAS ?
synonymous: RCA, composite | Out
|
YC ?
synonymous: S-Video | via accessories
|
YUV ?
synonymous: Component Signal | Out
|
| HDMI ? | Out
|
DV / HDV (FireWire) ?
synonymous: ILink / IEEE-1394 | In
Out
|
| USB ? | USB 2.0
|
| Microphone / Audio input ? | Mini-jack
|
| Headphones ? | 3.5 mm mini-jack
|
| Lanc ? | Yes
|
| Time-code interface ? | No
|
| Genlock ? | No
|
| Accessory shoe ? | AI
|
| HD-SDI ? | No
|
| Misc. |
| Weight (without battery) | 660 g |
| Weight (with battery) | 740 g |
| Battery type | Sony NP-FM50
|
| Battery capacity | 1180 mAh |
| Charger ? | internal
|
| Remote control | Yes
|
| Size |
| Height | 78 mm |
| Width | 84 mm |
| Depth | 165 mm |
| Relative Size ? | 10 |
| Viewfinder |
| Viewfinder available ? | Yes
|
| Color Viewfinder ? | Color
|
| Viewfinder format ? | 16:9 |
| Viewfinder pixels ? | 123200 Pixel |
| Display |
| Display available ? | Yes
|
| Color display ? | Color
|
| Display size | 3,5 Inch |
| Display format ? | 16:9 |
| Display pixels ? | 211200 Pixel |
| Touch Screen ? | Yes
|
| External controls |
| Manual Zoom ? | Rocker
Zoom ring multi-assigned
|
| Manual Focus ? | bi-functional focus or aperture wheel
|
| Manual Aperture ? | bi-functional focus or aperture wheel
|
| Focus switcher ? | No
|
| ND Filter ? | No
|
| Exp Lock ? | No
|
| Gain ? | No
|
| White balance ? | No
|
| Push AF ? | No
|
| Audio Levels ? | No
|
Custom Keys ?
synonymous: User buttons | No
|
Audio
|
| [ top ] | Sony HDR-SR1 |
| Audio Formats ? | AC-3 Dolby Digital 5.1 640 kbit max.
|
| Microphone ? | Stereo internal
Mini-jack external
|
| Audio Control ? | auto
|
| Audio levels ? | No
|
Still
|
| [ top ] | Sony HDR-SR1 |
| Recording Medium ? | Memory Stick Duo
|
| Medium included ? | No
|
| Effective pixels ? | |
| Resolutions ? | 2304x1728
2304x1296
1600x1200 |
| Standard ? | JPEG Exif 2.2
|
| Flash ? | Yes
|
Misc.
|
| [ top ] | Sony HDR-SR1 |
| Specials | &"Smooth Slow Record" slow motion mode: 3 seconds are recorded with 200 half frames/sec., resulting in a 4-fold slow motion.However, the recording is without sound and in poorer image quality. |
Product Shots
|
| [ top ] | Sony HDR-SR1 |

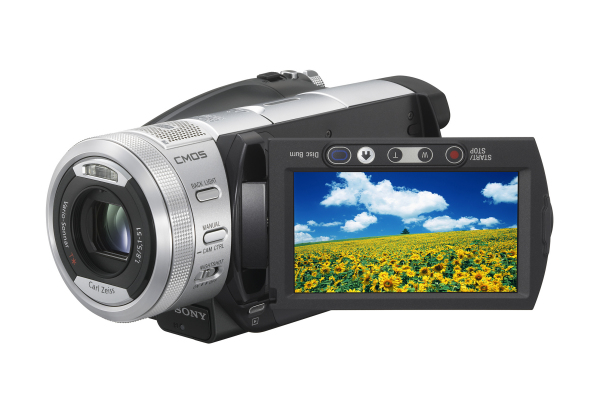

| View 1 | |

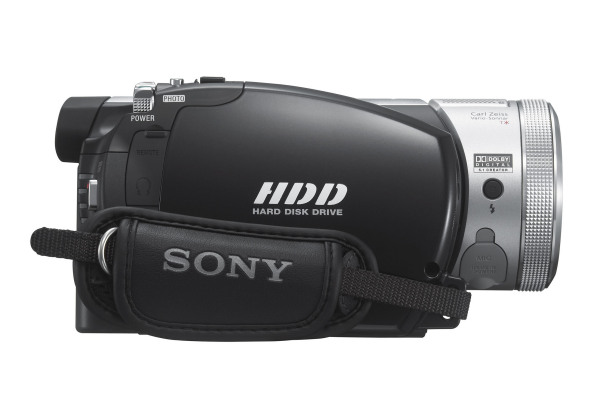

| View 2 | |
Test results
|
| Test pictures |
| [ top ] | Sony HDR-SR1 |
| luminance resolution | |
| chrominance resolution | |
| lens distortion | |
| test small ISO image | |
| noise / internal microphone | |
| test picture 1200 Lux | |
| Test image 12 lux auto-mode ? | |
| Test image 12 lux optimized ? | |
| slashCAM rating |
| Lowlight ? | Satisfactory |
| Resolution ? | Sufficient |
| Color performance ? | Sufficient |
| subj.Picture impression ? | Satisfactory |
| Optical Zoom ? | Sufficient |
| Wide Angle ? | Sufficient |
| Configuration / image ? | Satisfactory |
| Configuration / sound ? | Sufficient |
| Handling ? | Sufficient |
| Portability ? | Very good |
| Photo function ? | Satisfactory |
| Optics ? | Good |
| Dynamics ? | Good |
| Conclusion slashCAM |
| slashCAM rating ? | Satisfactory
|
Total score ?
(maximal 570) | 274 |
| Pros | HDMI out
+ good Display
|
| Cons | - bad color resolution
- SD-quality only average
|
| Conclusion | For a AVCHD model the Sony HDR-SR1 offers only average brightness resolution, the color resolution is beneath SD-level.Occasionally significant (colored) moirees can be seen on fine details.The subjective image impression is good to satisfactory, which is partly due to the good dynamics behavior with little noise and few smear-effects.Color-wise the SR1 is pleasantly coherent.The wide angle is very limited for indoors, but on the other hand there are only few lens errors.in low-light situations the SR1 is satisfactory. |
