Canon HF S10 (Legria HF S10/ VIXIA HF S10)

display: - Test/Review and technical specifications3 models per page
Model

Canon HF S10
Picture ?
Manufacturer Canon Informationen zu Canon

Name HF S10
European name ?Legria HF S10
US name ?VIXIA HF S10
lowest US price 749 $
On the market since April 2009
Manufacturers URL link to Canon
Test preview

[ top ]Canon HF S10
slashCAM rating ?Good
test picture 1200 Lux
test picture 12 Lux
Video

[ top ]Canon HF S10
Video formats ? AVCHD
Recording Medium SDHC card
built-in flash memory
video resolutions EU ?AVCHD 1920 x 1080/50i
AVCHD 1920 x 1080/25p
video resolutions US ?AVCHD 1920 x 1080/60i
AVCHD 1920 x 1080/24p
AVCHD 1920 x 1080/30p
Max Bitrate ?24 Mbit/s
Compression format ? MPEG4
on-board memory ?32 GB
Optics
Optics Manufacturer ? Canon
Optical Zoom ?10 x
Wide Angle 16:9 ?43,6 mm
Filter diameter ?58 mm
Image Stabilization ?optical
ND Filter ?No
Exchangable optics ?No
Image Sensor
Number of sensors ?1
Size of image sensor ?1/2,6 inch
image sensor effective pixel count 16:9 ?6010000 Pixel
Image Sensor Type ? CMOS
Controls
White Balance ?auto
manual
presets
Focus ?auto
manual
Minimum shutter time ?2.000
Maximum shutter time ?1/6
Apperture control ?auto
manual
Infrared recording ?
Expanded Focus ?Yes
Peaking ?Yes
Signal Processing
Zebra ?70%
100%
Histogram ?No
adjustable sharpness ?Yes
Adjustable color ?Yes
Cinegamma ?Yes
Black Strech ?No
Knee ?No
Colorbars ?Yes
Misc.
Shot Transition ?No
Custom Presets ?Yes
Set Time Code ?No
Configuration

Connections
[ top ]Canon HF S10
FBAS ?
synonymous: RCA, composite
Out
YC ?
synonymous: S-Video
No
YUV ?
synonymous: Component Signal
Out
HDMI ? Out
DV / HDV (FireWire) ?
synonymous: ILink / IEEE-1394
-
USB ?USB 2.0
Microphone / Audio input ?Mini-jack
Headphones ?also AV-output
Lanc ?No
Time-code interface ?No
Genlock ?No
Accessory shoe ?Advanced Mini
HD-SDI ?No
Misc.
Weight (without battery) 450 g
Weight (with battery) 500 g
Battery type Canon BP-807
Battery capacity 890 mAh
Charger ?internal
Remote control Yes
Size
Height 69 mm
Width 70 mm
Depth 136 mm
Relative Size ?6
Viewfinder
Viewfinder available ?No
Color Viewfinder ?-
Viewfinder format ?-
Viewfinder pixels ?
Display
Display available ?Yes
Color display ?Color
Display size 2,7 Inch
Display format ?16:9
Display pixels ?211000 Pixel
Touch Screen ?No
External controls
Manual Zoom ?Rocker
Manual Focus ?Wheel
Menu
Joystick
Manual Aperture ?bi-functional focus or aperture wheel
Focus switcher ?Yes
ND Filter ?No
Exp Lock ?No
Gain ?No
White balance ?No
Push AF ?No
Audio Levels ?No
Custom Keys ?
synonymous: User buttons
1
Audio

[ top ]Canon HF S10
Audio Formats ?Dolby AC-3 Digital 2 channel 48 KHz
Microphone ?Stereo internal
Mini-jack external
Audio Control ?auto
manual
Audio levels ?Viewfinder
Screen
Still

[ top ]Canon HF S10
Recording Medium ?built-in flash memory
SDHC card
Medium included ?No
Effective pixels ?
Resolutions ?3264 x 2448
Standard ?JPEG Exif 2.2
Flash ?Yes
Misc.

[ top ]Canon HF S10
Specials
Product Shots

[ top ]Canon HF S10

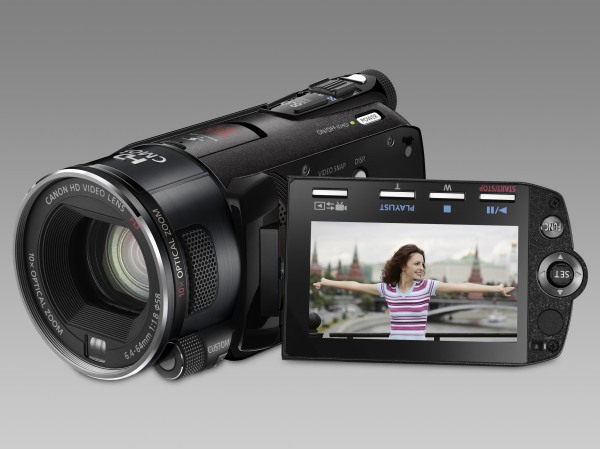

View 1

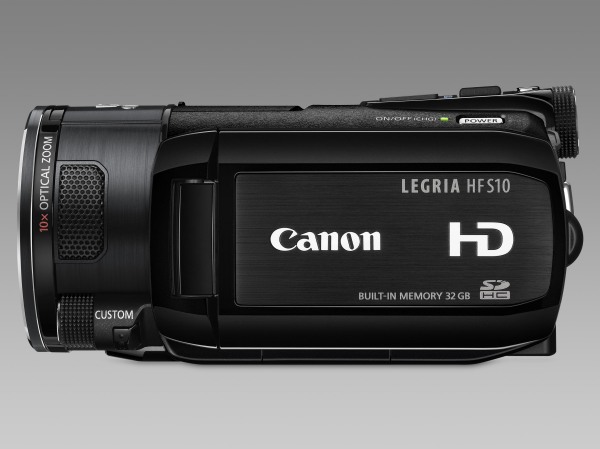

View 2
Test results

Test pictures
[ top ]Canon HF S10

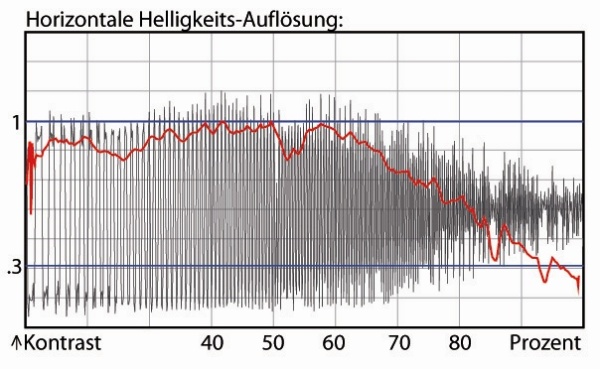

luminance resolution

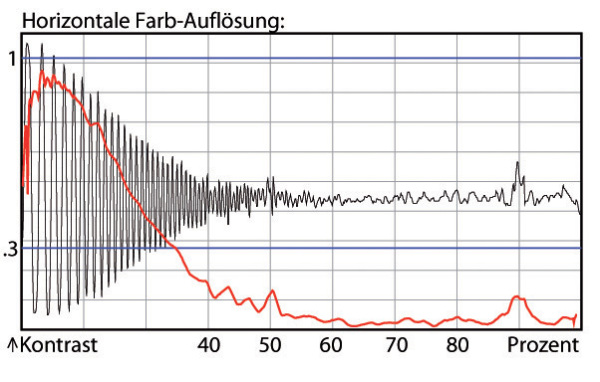

chrominance resolution

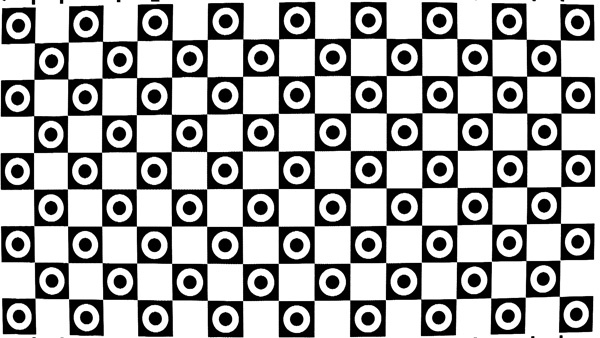

lens distortion
test small ISO image

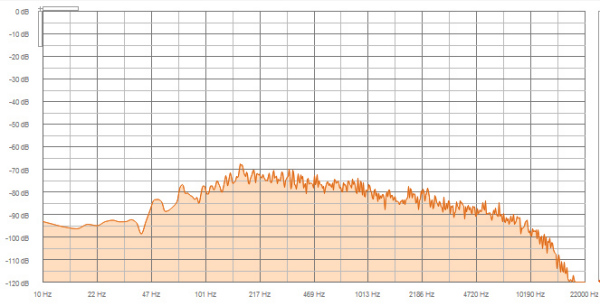

noise / internal microphone

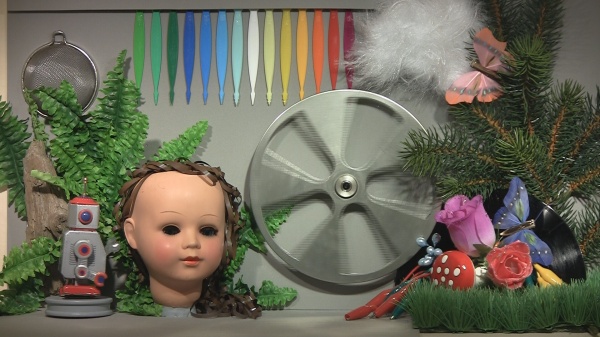

test picture 1200 Lux
test picture 12 Lux
slashCAM rating
Lowlight ?Satisfactory
Resolution ?Good
Color performance ?Very good
subj.Picture impression ?Very good
Optical Zoom ?Sufficient
Wide Angle ?Poor
Configuration / image ?Good
Configuration / sound ?Satisfactory
Handling ?Satisfactory
Portability ?Very good
Photo function ?Satisfactory
Optics ?Good
Dynamics ?Good
Conclusion slashCAM
slashCAM rating ?Good
Total score ?
(maximal 570)
344
Pros + Many manual controls
Cons - partially the operating procedures are not well conceived
- no 1/25 sec. shutter speed in cinema mode
- small wide angle
Conclusion The sensorīs high pixel resolution seems to reduce Canonīs usually excellent sharpness.Some missed functionalities like zebra or a manual control ring are back on bord.The menues are smoothly animated, but for examplethe intricate handling of the focus hinders a fluent workflowA little disappointing is that the big 1/2 sensor size doesnīt result in better low-light performance.So for some users Canonīs 2008 models will be more interesting, especially as these are decidedly cheaper.
